Voltage Tester

Testo 750-3

Testo 750-3

Rs. 12,700.00

GST and accessories extra

Clear, patented all-round LED display
In accordance with DIN EN 61243-3:2011 and CAT III
With practical torch for measuring point illumination
Including RC trigger function and vibrating load buttons

With the testo 750-2 voltage tester you can test electrical systems and equipment reliably and easily for voltage or de-energization thanks to the all-round LED display and unique fibre-optic technology. Compared to the testo 750-1, it is also suitable for single pole voltage testing to determine quickly whether conductors are live.

Product Description

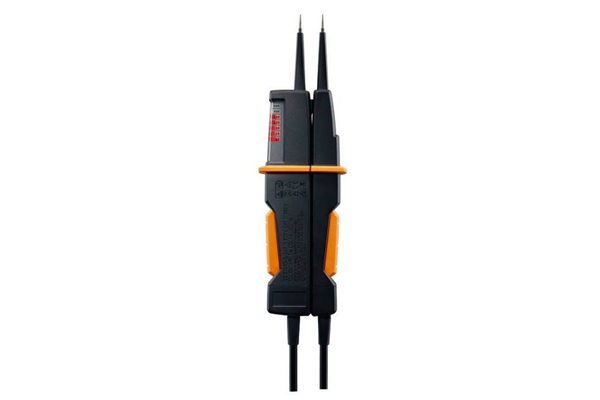

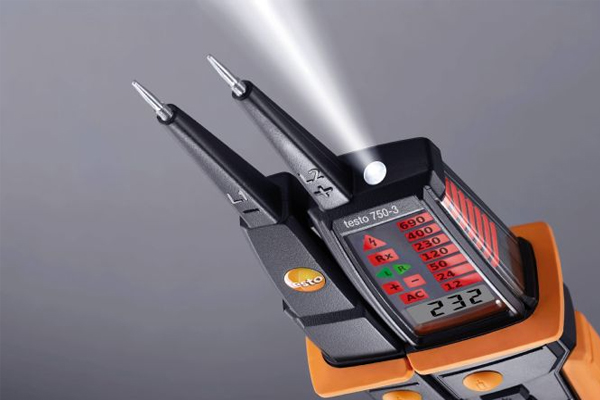

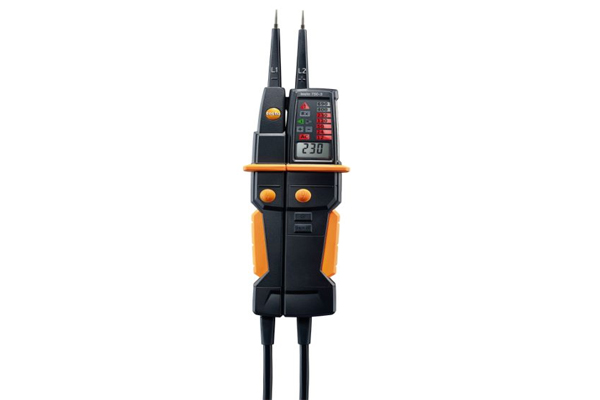

The testo 750-3 voltage tester is the most innovative voltmeter on the market. The clear all-round LED display with fibre-optic technology for ideal voltage indication can easily be read in any position. A second LC display also indicates the current reading. An anti-slip ring and the ergonomic shape of the handle also ensure you can work comfortably. The integrated torch helps with the illumination of dark measuring points. And the voltage tester is extremely durable thanks to the robust housing.

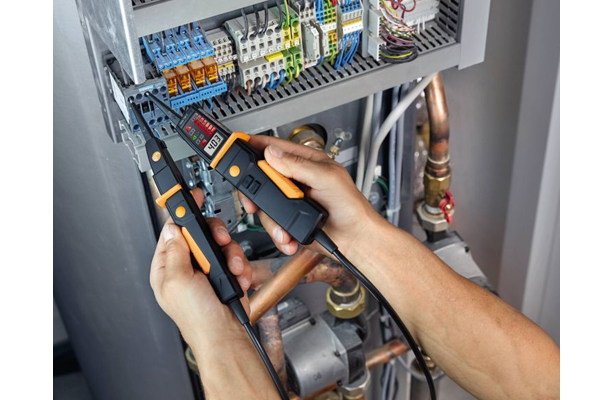

The testo 750-3 voltage tester is first and foremost suitable for determining voltage or de-energization on electrical circuits or systems. In addition, it can also be used to test continuity, measure rotating magnetic fields and test residual current circuit breakers via the RC trigger function. Vibrating load buttons ensure that trigger tests cannot be carried out accidentally.

Delivery Scope

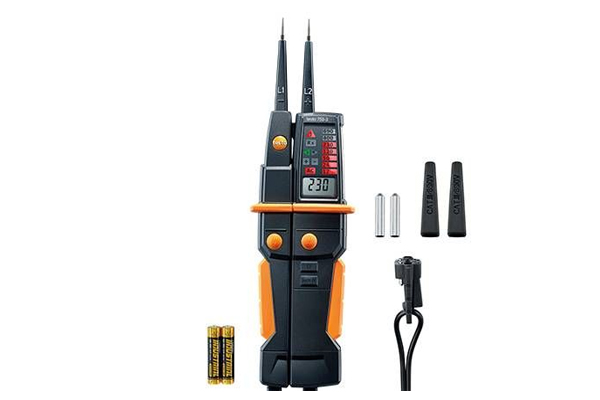

testo 750-3 voltage tester, including batteries, measuring tip protector, measuring tip caps, calibration protocol and instruction manual.

DC voltage
Measuring range	12 to 690 V
Resolution	max. 0.1 V
Accuracy	± (3 % of mv + 5 Digit)

AC voltage
Measuring range	12 to 690 V
Resolution	max. 0.1 V
Accuracy	± (3 % of mv + 5 Digit)

General technical data
Operating humidity	0 to 95 %RH
Weight	295 g
Dimensions	270 x 70 x 35 mm
Operating temperature	-10 to +50 °C
Product colour	Black
Protection class	IP64
Standards	EN 61243-3; EN 61326-1; EN 61010-1
Battery type	2 AAA micro batteries
Display type	LCD
Display size	one-line
Storage temperature	-15 to +60 °C
Overvoltage Category	CAT IV 600V; CAT III 1000V
Authorizations	CSA; CE

Instrument Measurement Functions
Continuity testing	yes
Display ligthing	yes
Hold	yes
RDC/RC trigger function	yes
Rotating magnetic field testing	yes
Single pole phase testing	yes
Measuring point illumination	yes

Product Brochure

Data sheet testo 750 (application/pdf, 296 KB)	Download
Instruction manual testo 750 (application/pdf, 1.102 KB)	Download
