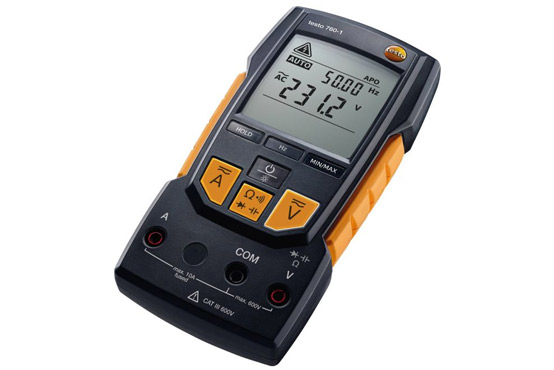

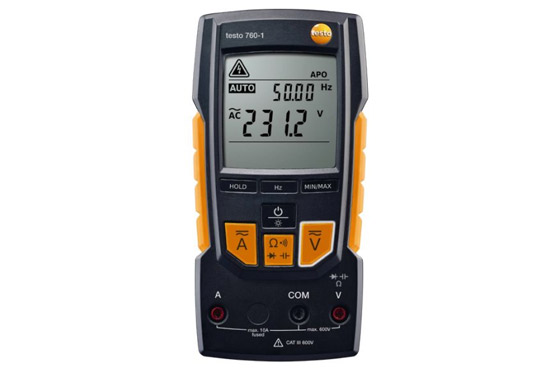

Testo 760-1
Rs. 12,150.00
No dial, no risk: The testo 760-1 digital multimeter gives you easier and more reliable measurement of all important electrical parameters than ever before. Assignment of the measuring sockets enables automatic detection of measurement parameters. You don't need to make any adjustments – and you can't make any mistakes.
GST and accessories extra
Product Description
In comparison to standard multimeters on the market, with the testo 760-1 there is no need to first select the measuring sockets and then the measurement function. The instrument detects the appropriate measurement parameter via the socket assignment all on its own – and so rules out any dangerous incorrect settings.
The operation of the multimeter is easier and more modern than ever. The traditional dial is replaced by function keys, enabling you to control the instrument with just one hand. And thanks to the large, illuminated display you can see your readings clearly at a glance. The testo 760-1 has the most important functions for your daily measuring tasks and is therefore the ideal entry-level instrument in the digital multimeter class.
Delivery Scope
| DC voltage | |
|---|---|
|
Measuring range |
0.1 to 600 V |
|
Resolution |
max. 0.1 mV |
|
Accuracy |
± (0.8 % of mv + 3 Digit) |
| AC voltage | |
|---|---|
|
Measuring range |
0.1 mV to 600 V |
|
Resolution |
max. 0.1 mV |
|
Accuracy |
± (1.0 % of mv + 3 Digit) |
| DC current | |
|---|---|
|
Measuring range |
0.1 mA to 10 A |
|
Resolution |
max. 0.1 |
|
Accuracy |
± (1.5 % of mv + 5 Digit) |
| AC current | |
|---|---|
|
Measuring range |
0.1 mA to 10 A |
|
Resolution |
max. 0.1 mA |
|
Accuracy |
± (1.0 % of mv + 3 Digit) |
| Resistance | |
|---|---|
|
Resolution |
max. 0.1 Ohm |
|
Measuring range |
0.1 to 40.00 MOhm |
|
Accuracy |
± (1.5 % of mv + 3 Digit) |
| Capacitance | |
|---|---|
|
Resolution |
max. 0.01 nF |
|
Measuring range |
0.001 nF to 100 μF |
|
Accuracy |
± (1.5 % of mv + 5 Digit) |
| Frequency | |
|---|---|
|
Resolution |
max. 0.001 Hz |
|
Measuring range |
0.001 Hz to 512.0 kHz |
|
Accuracy |
± (0.1 % of mv + 1 Digit) |
| General technical data | |
|---|---|
|
Operating humidity |
0 to 80 %RH |
|
Weight |
340 g |
|
Dimensions |
167 x 85 x 45 mm |
|
Operating temperature |
-10 to +50 °C |
|
Product colour |
Black |
|
Protection class |
IP64 |
|
Standards |
EN 61326-1; EN 61010-2-033; EN 61140 |
|
Battery type |
2 AAA micro batteries |
|
Display type |
LCD |
|
Display size |
2 lines |
|
Interface |
4 measuring jacks |
|
Storage temperature |
-15 to +60 °C |
|
Overvoltage Category |
CAT III 600V; CAT IV 300V |
|
Authorizations |
CSA; CE |
|
Internal_resistance |
11 MOhm (AC / DC) |
| Instrument Measurement Functions | |
|---|---|
|
Diode test |
yes |
|
Continuity testing |
yes |
|
Display ligthing |
yes |
|
Hold |
yes |
|
MinMax |
yes |
|
Display (counts) |
4,000 |
|
Autom. measurement parameter detection |
yes |
