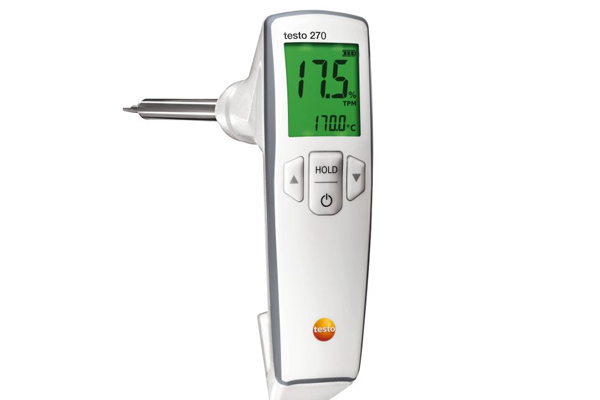

The digital cooking oil tester testo 270 will enable you to work more reliably, intuitively and efficiently. You will find this digital cooking oil tester to be a competent assistant, helping you achieve impeccable quality assurance when it comes to your frying processes. Easy cooking oil monitoring using testo 270 will enable you to observe critical TPM(Total Polar Material)/ TPC(Total Polar Compound) values, so that you can change the oil at just the right time. This saves you from changing the cooking oil more frequently than is necessary, allowing you to benefit from the associated cost savings.

Robust, simple and convenient for the kitchen

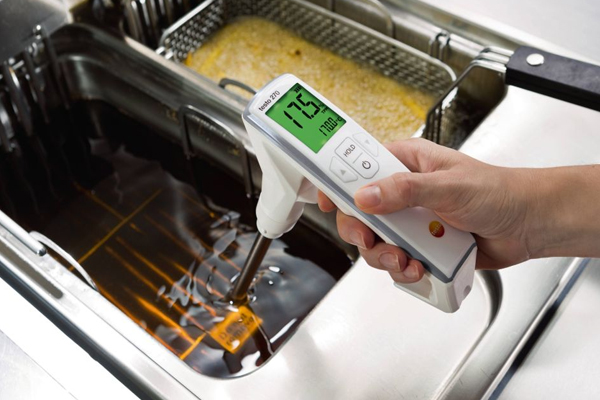

With its reliable measurement technology, testo 270 the digital cooking oil tester is your competent partner when it comes to ensuring quality assurance for your deep fryer, whether you are using the instrument in your restaurant business, commercial kitchen, in catering, food inspection, or in the quality assurance or production of food.

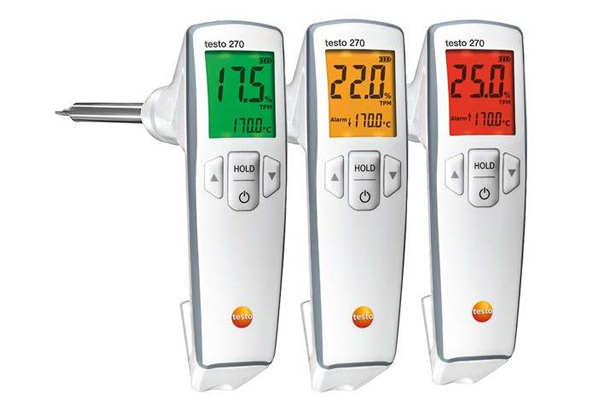

The digital cooking oil tester is easy to use: you can set the required TPM(Total Polar Material)/ TPC(Total Polar Compound) limit values in advance, and protect them from being modified inadvertently with a PIN. The cooking oil tester’s display will assist you during the measurement itself: it will flash until a stable reading is reached. The display signalling function in traffic light colours (red, yellow and green) enables quick detection of the measurement result range. Naturally, the accurate reading in %TPM can also be read off on the display.

All the advantages of testo 270 digital cooking oil tester at a glance

It’s simple: It features self-explanatory operation with 3-stage alarm backlight, the capacitive oil sensor from Testo makes it possible to carry out back-to-back measurements in hot oil without needing to wait for the cooking oil tester to cool down.
It’s accurate: Calibration can be carried out at the measuring location using the reference oil

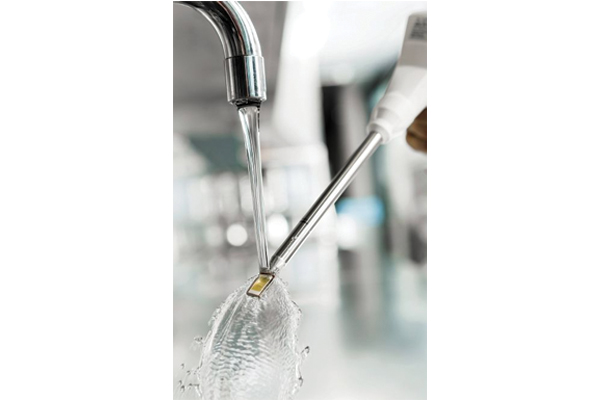

It’s robust: The fibreglass housing of Testo’s digital cooking oil tester is extremely impact-resistant. Moreover, the oil sensor is embedded in metal and is therefore break-proof. In compliance with protection class IP 65, it is protected against water jets and can be washed under running water
It’s safe: Users are protected from the heat of the cooking oil thanks to the measuring instrument’s ergonomic design
It’s clear: %TPM(Total Polar Material)/ TPC(Total Polar Compound)shown on the large display along with the unambiguous signalling function of the display illumination in traffic light colours (red, yellow and green); Hold and Auto-Hold function for the display of readings

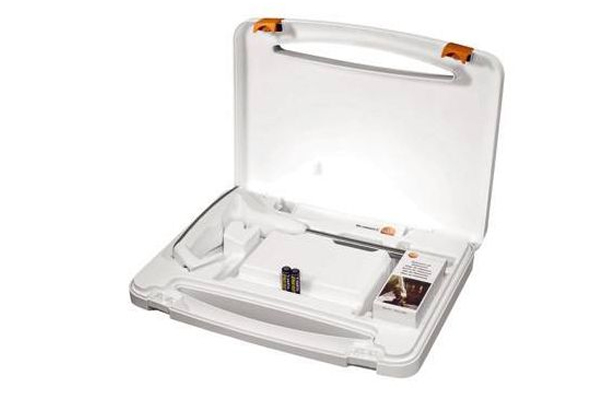

testo 270 digital cooking oil tester including reference oil, plastic case, calibration protocol, training card, instruction manual and batteries

Temperature - PTC
Measuring range	+40 to +200 °C
Accuracy	±1.5 °C
Resolution	0.1 °C

Temperature - PTC

Measuring range

+40 to +200 °C

Accuracy

±1.5 °C

Resolution

0.1 °C

TPM - Capacitive
Measuring range	0.0 to 40.0 % TPM
Accuracy	±2 % TPM (+40 to +190 °C) *typically, based on Testo in-house reference, at an ambient temperature of 25 °C
Resolution	0.5 % TPM (+40 to +190 °C)

TPM - Capacitive

Measuring range

0.0 to 40.0 % TPM

Accuracy

±2 % TPM (+40 to +190 °C)

*typically, based on Testo in-house reference, at an ambient temperature of 25 °C

Resolution

0.5 % TPM (+40 to +190 °C)

General technical data
Operating humidity	0 to +90 %RH
Weight	255 g
Reaction time	Approx. 30 s
Dimensions	170 x 50 x 300 mm ((LxWxH))
Operating temperature	0 to +50 °C
Product-/housing material	ABS / ABS-PC fibre glass 10%
Protection class	IP65
Product colour	white
Authorizations	CE 2014/30/EU
Length probe shaft	175 mm
Length probe shaft tip	35 mm
Diameter probe shaft	11 mm
Diameter probe shaft tip	10 mm
Alarm features	Upper and lower TPM limit value freely adjustable, visual alarm via 3-colour display backlighting (green, orange, red), values and illumination flash in the display until the measurement is ended (Auto Hold)
Battery type	2 batteries type micro AAA 1.5 V (LR03)
Battery life	at 20 °C approx. 25 h continuous operation (corresponds to approx. 500 measurements ), without display lighting
Display type	LCD
Display size	2 lines
Display ligthing	backlite
Storage temperature	-20 to +70 °C
Application temperature	+40 to +200 °C

General technical data

Operating humidity

0 to +90 %RH

Weight

255 g

Reaction time

Approx. 30 s

Dimensions

170 x 50 x 300 mm ((LxWxH))

Operating temperature

0 to +50 °C

Product-/housing material

ABS / ABS-PC fibre glass 10%

Protection class

IP65

Product colour

white

Authorizations

CE 2014/30/EU

Length probe shaft

175 mm

Length probe shaft tip

35 mm

Diameter probe shaft

11 mm

Diameter probe shaft tip

10 mm

Alarm features

Upper and lower TPM limit value freely adjustable, visual alarm via 3-colour display backlighting (green, orange, red), values and illumination flash in the display until the measurement is ended (Auto Hold)

Battery type

2 batteries type micro AAA 1.5 V (LR03)

Battery life

at 20 °C approx. 25 h continuous operation (corresponds to approx. 500 measurements ), without display lighting

Display type

LCD

Display size

2 lines

Display ligthing

backlite

Storage temperature

-20 to +70 °C

Application temperature

+40 to +200 °C
