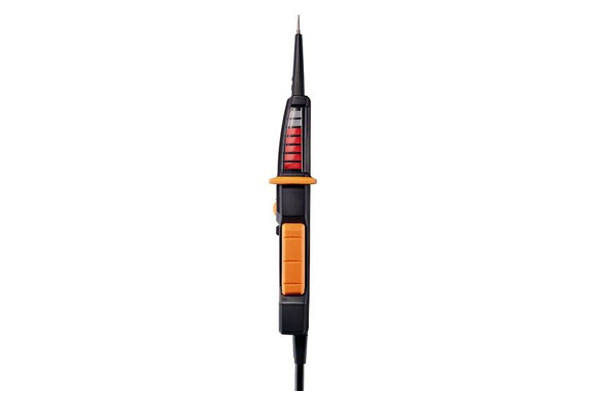

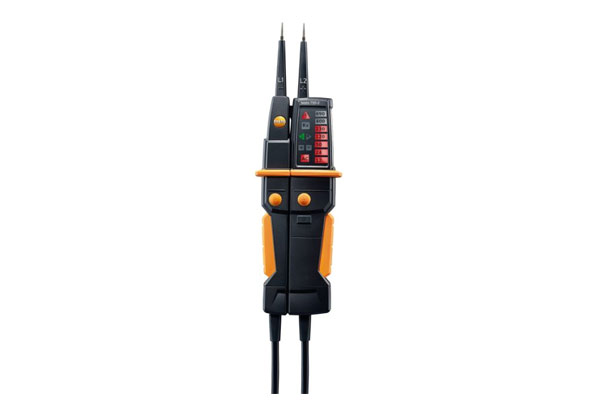

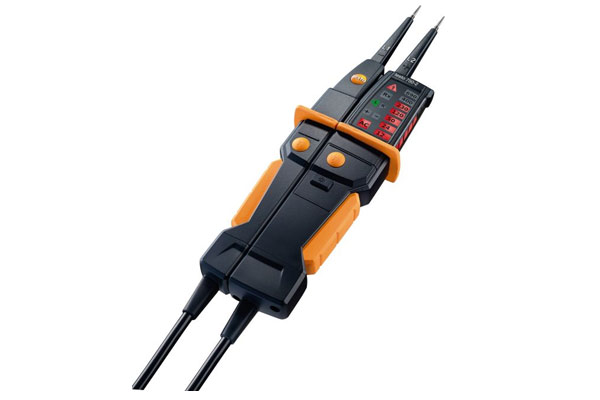

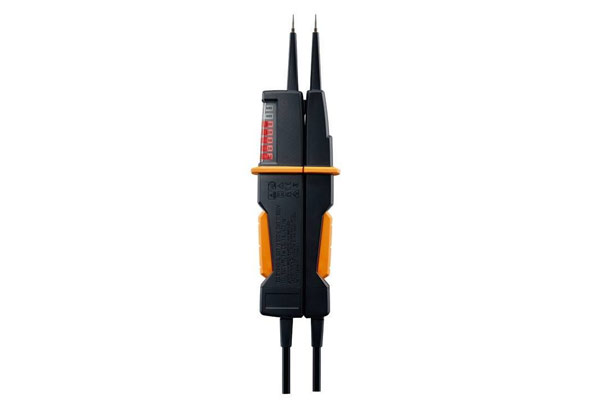

Testo 750-2
Rs. 9,160.00
GST and accessories extra
- Clear, patented all-round LED display
- In accordance with DIN EN 61243-3:2011 and CAT III

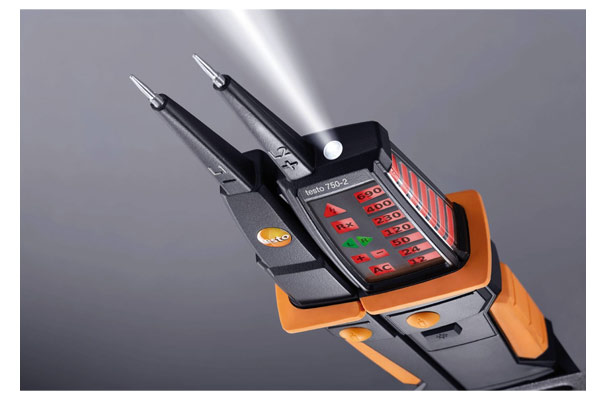

- With practical torch for measuring point illumination
- Including RC trigger function and vibrating load buttons

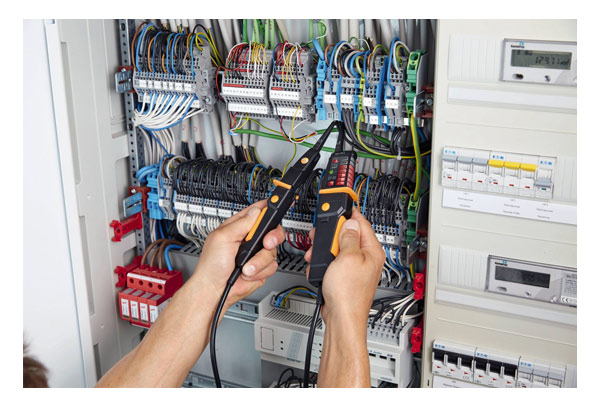

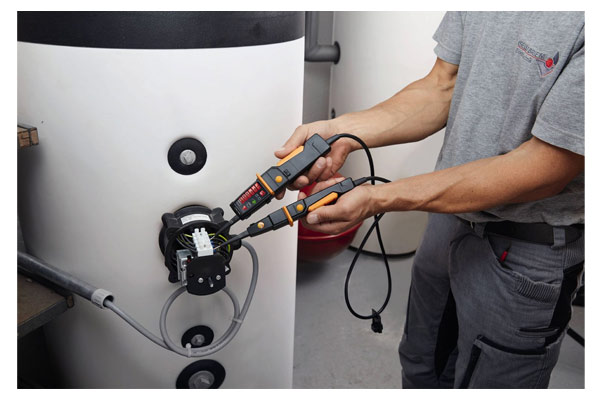

With the testo 750-2 voltage tester you can test electrical systems and equipment reliably and easily for voltage or de-energization thanks to the all-round LED display and unique fibre-optic technology. Compared to the testo 750-1, it is also suitable for single pole voltage testing to determine quickly whether conductors are live.
Product Description
In addition to determining voltage or de-energization on electrical circuits or systems, the testo 750-2 voltage tester is also suitable for use as a continuity tester and for rotating magnetic field measurement. It also has an RC trigger function for testing residual current circuit breakers. Vibrating load buttons ensure that trigger tests cannot be carried out accidentally.

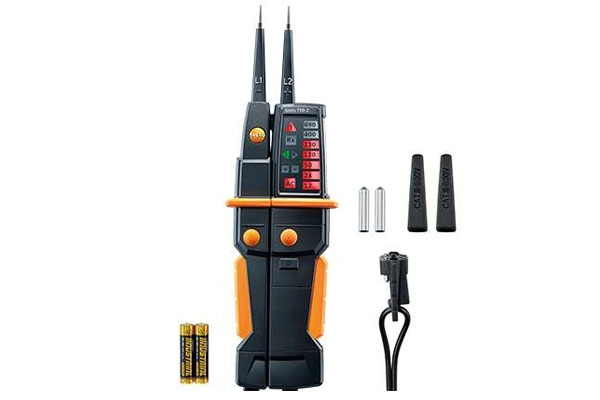

Delivery Scope
| DC voltage | |
|---|---|
|
Measuring range |
12 to 690 V |
|
Accuracy |
according to DIN EN 61243-3:2011 |
| AC voltage | |
|---|---|
|
Measuring range |
12 to 690 V |
|
Accuracy |
according to DIN EN 61243-3:2011 |
| General technical data | |
|---|---|
|
Operating humidity |
0 to 95 %RH |
|
Weight |
295 g |
|
Dimensions |
270 x 70 x 35 mm |
|
Operating temperature |
-10 to +50 °C |
|
Product colour |
Black |
|
Protection class |
IP64 |
|
Standards |
EN 61243-3; EN 61326-1; EN 61010-1 |
|
Battery type |
2 AAA micro batteries |
|
Storage temperature |
-15 to +60 °C |
|
Overvoltage Category |
CAT IV 600V; CAT III 1000V |
|
Authorizations |
CSA; CE |
| Instrument Measurement Functions | |
|---|---|
|
Continuity testing |
yes |
|
RDC/RC trigger function |
yes |
|
Rotating magnetic field testing |
yes |
|
Single pole phase testing |
yes |
|
Measuring point illumination |
yes |
