Air Flow

Testo 410-1

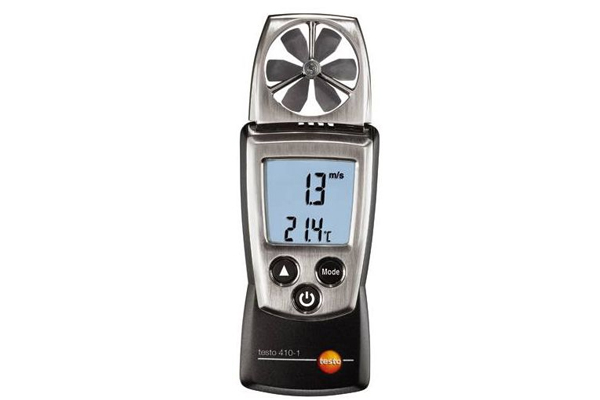

Testo 410-1 - Pocket-sized vane anemometer
Rs. 7,060.00
GST and accessories extra
  • Vane anemometer with permanently installed 30 mm vane
  • Measurement of air velocity and air temperature
  • Calculates wind chill and the Beaufort wind force
  • With single-point averaging, max/min values and Hold function
The testo 410-1 vane anemometer measures air velocity and air temperature. You can use it to carry out quick spot measurements at ventilation grilles (air outlets). The anemometer is also ideal to use outdoors. It displays the units m/s, km/h, fpm, mph and kts, and also calculates wind chill and the Beaufort wind force.

Product Description

The testo 410-1 vane anemometer is impressive thanks to its practical pocket size and is ideal for fast check measurements. With a measuring range of 0.4 to 20 m/s, the anemometer can even be used for low flow speeds.
The anemometer has a permanently mounted vane with a diameter of 30 mm. You can therefore use it for the integral measurement of air velocity at ventilation grilles (air outlets).
The anemometer is practical for outdoor operation: It not only measures air velocity and air temperature, but also calculates the Beaufort wind force and the wind chill temperature, which is the temperature perceived by a person due to wind-related cooling.
The vane anemometer with practical functions
The testo 410-1 includes a plug-on protective cap, as well as a wrist strap for secure measurement, and enables you to take advantage of the following functions:
Single-point averaging: The anemometer provides information on the average air velocity, e.g. at air outlets
Hold function: is used to record the current values relating to air velocity and air temperature and compare them with each other
Max/min values: get the minimum or maximum values since the anemometer was last switched on or reset, at the touch of a button
Illuminated display: read off your readings even in dark environments
Selectable units: for air velocity and temperature: m/s, km/h, fpm, mph, kts, Beaufort, °C, °F and wind chill



Delivery Scope

testo 410-1 vane anemometer for measuring air velocity and air temperature, including protective cap, wrist strap, calibration protocol and batteries.

Temperature - NTC

Measuring range

-10 to +50 °C

Accuracy

±0.5 °C

Resolution

0.1 °C

Measuring rate

0.5 s
Velocity - Vane

Measuring range

0.4 to 20 m/s

Accuracy

±(0.2 m/s + 2 % of mv)

Resolution

0.1 m/s
General technical data

Weight

110 g (with protective cap and batteries)

Dimensions

133 x 46 x 25 mm (incl. protective cap)

Operating temperature

-10 to +50 °C

Protection class

IP10

Battery type

2 AAA micro batteries

Battery life

100 h (average, without display illumination)

Storage temperature

-20 to +70 °C
Product Brochure
Datasheet testo 410 (application/pdf, 308 KB) Download
Instruction manual testo 410-1 (PDF, 242.1 kB) Download
