current/voltage tester

Testo 755-1

Testo 755-1

Rs. 17,620.00

GST and accessories extra

Easy, reliable operation through automatic measurement parameter detection
DIN EN 61243-3:2014 and DIN EN 61010‑1:2011 certified
Exchangeable measuring tips
Suitable for almost all electrical measuring tasks

Measuring current with a voltage tester? The innovative testo 755-1 makes this possible – and is therefore suitable for virtually all daily electrical measuring tasks. The practical automated switch-on function and automatic measurement parameter detection also mean you can work more reliably than ever before with it.

Product Description

The first voltage tester with current measurement is here: the testo 755-1. You can test electrical circuits or systems for voltage or de-energization, measure flow of current or current consumption and carry out continuity tests using a single instrument. In the process, the testo 755-1 voltage tester detects and selects all the electrical parameters automatically: you can just start measuring – without any switching on or selection.

The measuring tips, which can be quickly and simply exchanged, are also particularly user-friendly. This means you do not need to replace the whole instrument straight away in the event of damage. Just as practical: the integrated torch for illuminating dark measuring points.

The testo 755-1 current/voltage tester is a genuine allrounder which will make your day-to-day work easier.

Delivery Scope

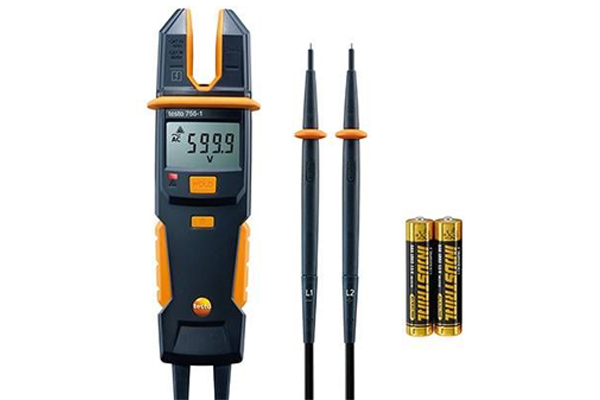

testo 755-1 current/voltage tester, including batteries, measuring tips, measuring tip caps, calibration protocol and instruction manual.

DC voltage
Measuring range	6 to 600 V
Resolution	max. 0.1 V
Accuracy	± (1.5 % of mv + 3 Digit)

AC voltage
Measuring range	6 to 600 V
Resolution	max. 0.1 V
Accuracy	± (1.5 % of mv + 3 Digit)

AC current
Measuring range	0.1 to 200 A
Resolution	max. 0.1 A
Accuracy	± (3 % of mv + 3 Digit)

Resistance
Resolution	max. 1 Ohm
Measuring range	30 to 100 kOhm
Accuracy	± (1.0 % of mv + 5 Digit)

General technical data
Operating humidity	0 to 75 %RH
Weight	320 g
Dimensions	199 x 62 x 40 mm
Operating temperature	-10 to +50 °C
Product colour	Black
Protection class	IP64
Standards	EN 61243-3; EN 61010-1
Battery type	2 AAA micro batteries
Display type	LCD
Display size	one-line
Storage temperature	-15 to +60 °C
Overvoltage Category	CAT IV 600V; CAT III 1000V
Authorizations	CSA; CE

Instrument Measurement Functions
Continuity testing	yes
Display ligthing	yes
Hold	yes
Measuring point illumination	yes
Display (counts)	4,000
Autom. measurement parameter detection	yes

Product Brochure

Data sheet testo 755 (application/pdf, 404 KB)	Download
Instruction manual testo 755 (application/pdf, 192 KB)	Download
