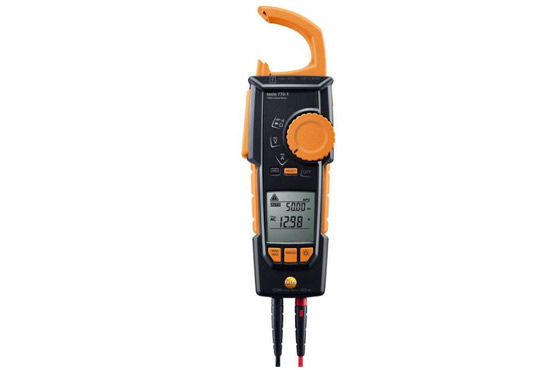

Testo 770-2
Rs. 23,070.00
GST and accessories extra
- Fully retractable pincer arm to make your work easy
- Auto AC/DC and large two-line display
- Measuring functions for starting current on electric motors and μA measurements
- Temperature adapter for type K thermocouples

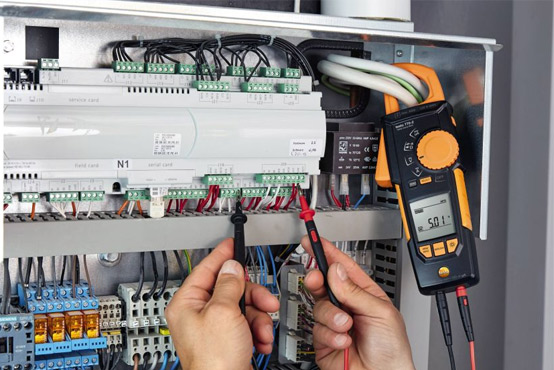

The innovative grab mechanism makes the testo 770-2 the perfect clamp meter for non-contact measurements on tightly packed cables with a small diameter. In addition to the standard functions of the testo 770-1 clamp meter, it also offers a temperature adapter and measures current in the µA range.
Product Description
Furthermore, it enables measurement of the starting current on electric motors and ionisation current testing in the µA range. The supplied temperature adapter for thermocouple probes can be used to measure electrical parameters as well as temperatures (compatible type K thermocouple probe can be ordered separately).
The clamp meter detects and selects AC/DC fully automatically and also provides automated selection of other electrical parameters such as resistance, continuity, diode and capacitance. This makes operation easier and more reliable than ever before. Your readings are clearly and distinctly presented on the two-line display.
Delivery Scope
| Temperature - TC Type K (NiCr-Ni) | |
|---|---|
|
Measuring range |
-20 to +500 °C |
|
Accuracy |
±1 °C (0 to +100 °C) |
|
Resolution |
0.2 °C |
| DC voltage | |
|---|---|
|
Measuring range |
1.0 to 600.0 V |
|
Resolution |
max. 1 mV |
|
Accuracy |
± (0.8 % of mv + 3 Digit) |
| AC voltage | |
|---|---|
|
Measuring range |
1.0 mV to 600.0 V |
|
Resolution |
max. 1 mV |
|
Accuracy |
± (1.0 % of mv + 3 Digit) |
| DC current | |
|---|---|
|
Measuring range |
0.1 to 400.0 A (clamp) 0.1 to 400.0 μA (measuring cables) |
|
Resolution |
0.1 (clamp) 0.1 (measuring cables) |
|
Accuracy |
± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 ) (measuring cables) |
| AC current | |
|---|---|
|
Measuring range |
0.1 to 400.0 A (clamp) 0.1 to 400 μA (measuring cables) |
|
Resolution |
0.1 A (clamp) 0.1 μA (measuring cables) |
|
Accuracy |
± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables) |
| Resistance | |
|---|---|
|
Resolution |
max. 0.1 Ohm |
|
Measuring range |
0.1 to 40.00 MOhm |
|
Accuracy |
± (1.5 % of mv + 3 Digit) |
| Capacitance | |
|---|---|
|
Resolution |
max. 0.01 nF |
|
Measuring range |
10 nF to 100.0 μF |
|
Accuracy |
± (1.5 % of mv + 5 Digit) |
| General technical data | |
|---|---|
|
Operating humidity |
0 to 80 %RH |
|
Weight |
378 g |
|
Dimensions |
249 x 96 x 43 mm |
|
Operating temperature |
-10 to +50 °C |
|
Product colour |
Black |
|
Connectable probes |
1 x temperature probe (adapter required for type K thermocouples) |
|
Standards |
EN 61326-1; EN 61010-2-032; EN 61140 |
|
Battery type |
3 AAA micro batteries |
|
Display type |
LCD |
|
Display size |
2 lines |
|

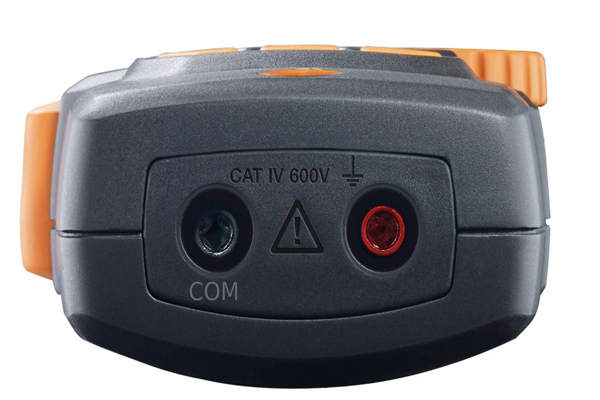

Interface |
2 measuring jacks |
|
Storage temperature |
-15 to +60 °C |
|
Overvoltage Category |
CAT IV 600V; CAT III 1000V |
|
Authorizations |
CSA; CE |
|
Internal_resistance |
11 MOhm (AC / DC) |
| Instrument Measurement Functions | |
|---|---|
|
Diode test |
yes |
|
Continuity testing |
yes |
|
Display ligthing |
yes |
|
Hold |
yes |
|
MinMax |
yes |
|
Temperature measurement with adapter |
yes |
|
True RMS |
yes |
|
Inrush current measurement |
yes |
|
Display (counts) |
4,000 |
|
μA current measuring range |
yes |
|
Autom. measurement parameter detection |
yes |
