Fluke-87v

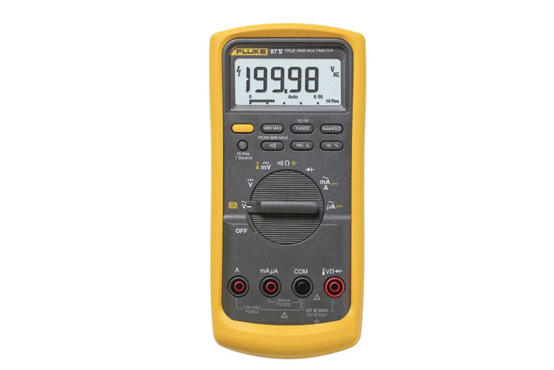

Product overview: Fluke 87V Industrial Multimeter

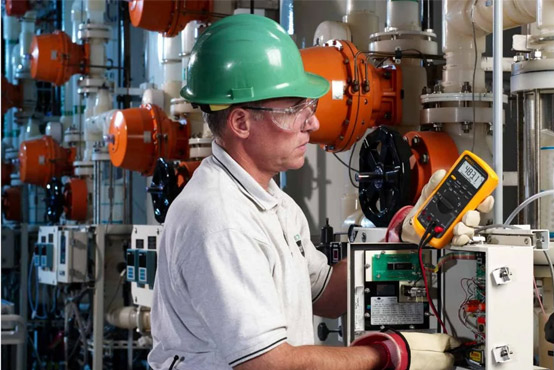

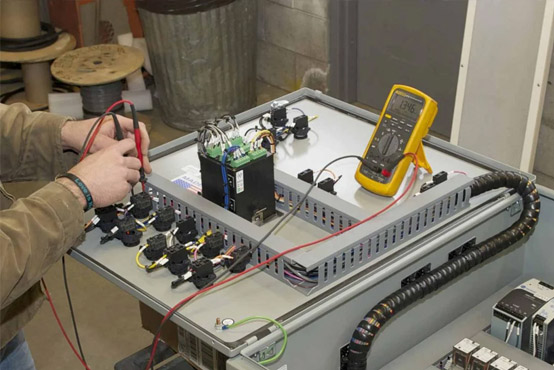

The Fluke 87V Industrial Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment - even in loud, high-energy, and high-altitude locations. The 87V is designed so you can work more efficiently.
- Easy-access door for fast battery changes without breaking the calibration seal
- Analog bar graph for fast changing or unstable signals
- Large digit display with bright, two-level backlight for easier reading in low light
- Touch Hold keeps readings on display even after removing probes
The 87V lets you identify complex electrical problems fast. It supports accurate measurements on VFDs using a low-pass filter. The meter also captures intermittents as fast as 250 µS using Peak Capture. High-frequency, high-energy noise generated by large drive systems is blocked from your measurements with specially designed shielding.
Built to highest safety standards
All the inputs in the 87V are updated to the third edition of the EN 61010-1 to CAT III 1000 V and CAT IV 600 V. The meter is designed to withstand spikes of more than 8000 V. You also benefit from an audible Input Alert warning if the test leads are placed in the incorrect input jacks for the measurement being made.

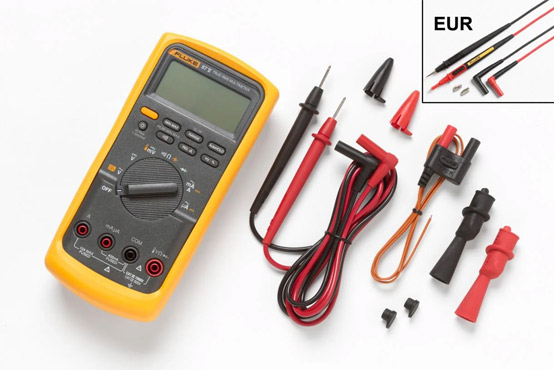

Removable holster with built in test lead and probe storage for convenience
The 87V has a removeable holster that also holds a test probe during testing for easier viewing. Relative mode lets you remove test lead resistance, improving accuracy of low-resistance measurements. To make your life even easier, the 87V fits into an optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks.
Additional measurement features
The Fluke 87V is designed and built in the U.S. and comes with a lifetime warranty.
Specifications: Fluke 87V Industrial Multimeter
|
Specifications |
||
|
Voltage DC |
Maximum voltage |
1000 V |
|
Accuracy |
±(0.05% + 1) |
|
|
Maximum resolution |
10 µV |
|
|
Voltage AC |
Maximum voltage |
1000 V |
|
Accuracy |
±(0.7% + 2) True RMS |
|
|
AC bandwidth |
20 kHz with low pass filter; 3 dB @ 1 kHz |
|
|
Maximum resolution |
0.1 mV |
|
|
Current DC |
Maximum amps |
10 A (20 A for 30 seconds maximum) |
|
Amps accuracy |
±(0.2% + 2) |
|
|
Maximum resolution |
0.01 µA |
|
|
Current AC |
Maximum amps |
10 A (20 A for 30 seconds maximum) |
|
Amps accuracy |
±(1.0% + 2) True RMS |
|
|
Maximum resolution |
0.1 µA |
|
|
Resistance |
Maximum resistance |
50 MΩ |
|
Accuracy |
±(0.2% + 1) |
|
|
Maximum resolution |
0.1 Ω |
|
|
Capacitance |
Maximum capacitance |
9,999 µF |
|
accuracy |
±(1% + 2) |
|
|
Maximum resolution |
0.01 nF |
|
|
Frequency |
Maximum frequency |
200 kHz |
|
Accuracy |
±(0.005% + 1) |
|
|
Maximum resolution |
0.01 Hz |
|
|
Duty cycle |
Maximum duty cycle |
99.9% |
|
Accuracy |
±(0.2% per kHz + 0.1%) |
|
|
Maximum resolution |
0.1% |
|
|
Temperature measurement |
–200.0 °C – 1090 °C |
|
|
80 BK temperature probe |
–40.0 °C – 260 °C |
|
|
Conductance |
Maximum conductance |
60.00 nS |
|
Accuracy |
±(1.0% + 10) |
|
|
Maximum resolution |
0.01 nS |
|
|
Diode |
Range |
3 V |
|
Resolution |
1 mV |
|
|
Accuracy |
±(2% + 1) |
|
|
Duty cycle range |
Accuracy |
Within ±(0.2% per kHz + 0.1%) |
|
Environmental Specifications |
||
|
Operating temperature |
–20 °C to + 55 °C |
|
|
Storage temperature |
–40 °C to + 60 °C |
|
|
Humidity (without condensation) |
0% – 90% (0 °C – 35 °C) |
|
|
Operating Altitude |
2000 m |
|
|
Safety Specifications |
||
|
Overvoltage category |
EN 61010–1 to 1000 V CAT III, 600V CAT IV |
|
|
Agency approvals |
CE, CSA, RCM |
|
|
Mechanical and General Specifications |
||
|
Size |
201 x 98 x 52 mm (with holster) |
|
|
Weight |
355 g |
|
|
Display |
Digital |
6000 counts updates 4/sec. |
|
Analog |
32 segments, updates 40/sec |
|
|
Frequency |
19,999 counts, updates 3/sec at > 10 Hz |
|
|
Warranty |
Lifetime |
|
|
Battery Life |
Alkaline |
~400 hours typical, without backlight |
|
Shock |
1 Meter drop per IEC 61010–1:2001 |
|
|
Vibration |
Per MIL–PRF–28800 for a Class 2 instrument |
|
