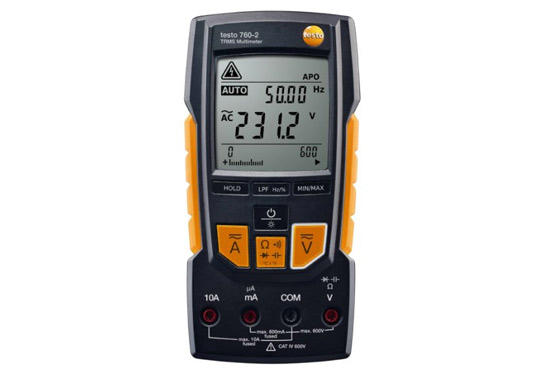

Testo 760-2
GST and accessories extra
- Easy, reliable work thanks to automatic measurement parameter detection
- Current measurement in the µA range
- True root mean square measurement - TRMS
- Low-pass filter for accurate measurement results on frequency converter controlled motors
The testo 760-2 digital multimeter is the allrounder for all important electrical measuring tasks. Thanks to the automatic detection of measurement parameters, it offers the greatest possible reliability for every application. You can also measure current in the µA range and determine the true root mean square using this digital multimeter.
Product Description
The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever before. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings.
It is not operated conventionally by a dial, but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly.
The testo 760-2 digital multimeter has the most important functions for measuring current, voltage and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.
Temperatures can also be measured with this multimeter in addition to electrical parameters.
Delivery Scope
testo 760-2 TRMS multimeter, including batteries, 1 set of measuring cables (0590 0010), 1 x adapter for thermocouples type K and instruction manual.
| Temperature - TC Type K (NiCr-Ni) | |
|---|---|
|
Measuring range |
-20 to +500 °C |
|
Accuracy |
±1 °C (0 to +100 °C) |
|
Resolution |
0.2 °C |
| DC voltage | |
|---|---|
|
Measuring range |
0.1 to 600 V |
|
Resolution |
max. 0.1 mV |
|
Accuracy |
± (0.8 % of mv + 3 Digit) |
| AC voltage | |
|---|---|
|
Measuring range |
0.1 mV to 600 V |
|
Resolution |
max. 0.1 mV |
|
Accuracy |
± (1.0 % of mv + 3 Digit) |
| DC current | |
|---|---|
|
Measuring range |
0.1 μA to 10 A |
|
Resolution |
max. 0.1 |
|
Accuracy |
± (1.5 % of mv + 5 Digit) |
| AC current | |
|---|---|
|
Measuring range |
0.1 μA to 10 A |
|
Resolution |
max. 0.1 μA |
|
Accuracy |
± (1.5 % of mv + 5 Digit) |
| Resistance | |
|---|---|
|
Resolution |
max. 0.01 Ohm |
|
Measuring range |
0.01 to 60.00 MOhm |
|
Accuracy |
± (1.5 % of mv + 3 Digit) |
| Capacitance | |
|---|---|
|
Resolution |
max. 0.01 nF |
|
Measuring range |
0.001 nF to 30000 μF |
|
Accuracy |
± (1.5 % of mv + 5 Digit) |
| Frequency | |
|---|---|
|
Resolution |
max. 0.1 Hz |
|
Measuring range |
0.001 Hz to 30.00 MHz |
|
Accuracy |
± (0.1 % of mv + 1 Digit) |
| General technical data | |
|---|---|
|
Operating humidity |
0 to 80 %RH |
|
Weight |
340 g |
|
Dimensions |
167 x 85 x 45 mm |
|
Operating temperature |
-10 to +50 °C |
|
Product colour |
Black |
|
Protection class |
IP64 |
|
Standards |
EN 61326-1; EN 61010-2-033; EN 61140 |
|
Battery type |
3 AAA micro batteries |
|
Display type |
LCD |
|
Display size |
2 lines |
|
Interface |
4 measuring jacks |
|
Storage temperature |
-15 to +60 °C |
|
Overvoltage Category |
CAT III 1000V; CAT IV 600V |
|
Authorizations |
CSA CSA; CE |
|
Internal_resistance |
11 MOhm (AC / DC) |
| Instrument Measurement Functions | |
|---|---|
|
Diode test |
yes |
|
Continuity testing |
yes |
|
Current probe measurement with adapter |
yes |
|
Display ligthing |
yes |
|
Hold |
yes |
|
MinMax |
yes |
|
Temperature measurement with adapter |
yes |
|
True RMS |
yes |
|
Low-pass filter |
yes |
|
Duty cycle measurement |
yes |
|
Display (counts) |
6,000 |
|
μA current measuring range |
yes |
|
Autom. measurement parameter detection |
yes |
