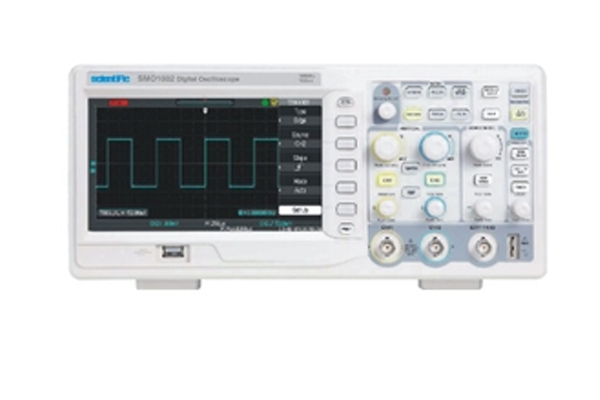

SMO702
Price on Request
GST and accessories extra
- Product Features Signal Bandwidth : 70 MHz
- Real time sampling:Max 1 GSa/s
- Equivalent sampling rate: Max 50 GSa/s
- 7.0" TFT LCD Color display
- 2 Mpts memory depth
Product Features
Signal Bandwidth : 70 MHz
Real time sampling:Max 1 GSa/s
Equivalent sampling rate: Max 50 GSa/s
7.0" TFT LCD Color display
2 Mpts memory depth
Independent vertical scale and position control knobs for each channel.
Edge, Pulse Width, video, Slope, Alternate trigger mode.
Math functions including Add, Subtract, Multiply, Divide and 1024 point FFT
32 parameters of automatic measurements
Unique Digital Filter and waveform recorder function.
Advanced cursor modes: Manual, Auto and Track
Waveform Intensity and Grid Brightness can be adjusted
PASS/ FAIL detection, PASS/FAIL output
Built-in 70 MHz hardware frequency counter
Save/recall types: Setups, Waveforms, CSV file, Picture
Standard Interface
USB Host: Support US flash driver save/ recall function and update firmware,
USB Device: Support PictBridge compatible printer and support PC remote control, Pass/ fail output.
