Smart Probes

Testo 510 i

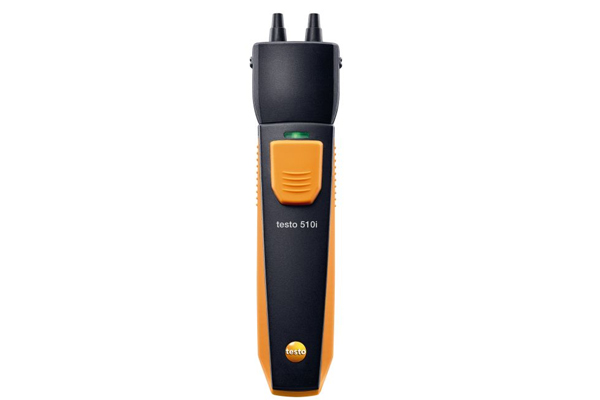

Testo 510 i - differential pressure measuring instrument with smartphone operation

Rs. 11,950.00

GST and accessories extra

Measurement of gas flow and static pressure
Measurement menu for pressure drop test including alerts
Magnetic holder for easy attachment

Handy and intelligent: the compact testo 510i differential pressure measuring instrument featuring professional measuring technology and smartphone operation for measuring differential pressure. Readings can be viewed conveniently on your smartphone/tablet via the testo Smart App and emailed directly.

Product Description

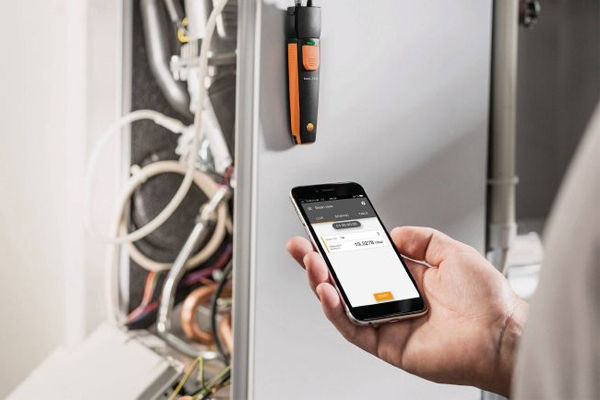

The testo 510i differential pressure measuring instrument, used in conjunction with a smartphone or tablet, is suitable for quick and easy measurement of gas flow pressure and static pressure, as well as pressure drops on fans and filters.

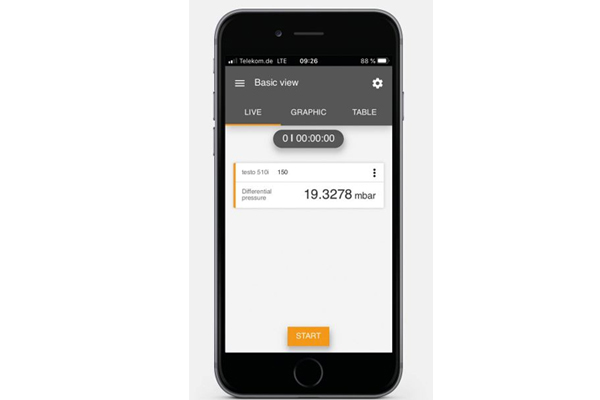

Turn your smartphone/tablet into a measuring instrument

Use your smartphone or tablet as a display: installed on a terminal device, the testo Smart App allows you to view testo 510i readings conveniently and carry out reliable timed and multi-point mean calculation. The App also includes a measurement menu for the pressure drop test. All measurement data can be displayed as a chart or in table form. The measurement data log can be emailed directly as a PDF or Excel file.

System requirements:

iOS 11 or later
Android 6.0 or later
Bluetooth 4.0

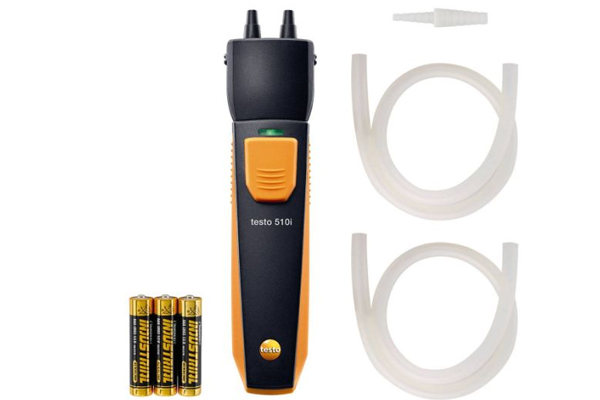

Delivery Scope

testo 510i differential pressure measuring instrument with smartphone operation, including hose set (Ø 4 mm and 6 mm) with adapter, batteries and calibration protocol.

Differential pressure (internal sensor) - Piezoresistive
Measuring range	-150 to +150 hPa
Accuracy	±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)
Resolution	0.01 hPa

Differential pressure (internal sensor) - Piezoresistive

Measuring range

-150 to +150 hPa

Accuracy

±0.05 hPa (0 to +1 hPa)

±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)

Resolution

0.01 hPa

General technical data
Weight	92 g
Dimensions	148 x 36 x 23 mm
Operating temperature	-20 to +50 °C
Product-/housing material	ABS / TPE
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 AAA micro batteries
Battery life	150 h
Storage temperature	-20 to +60 °C

Product Brochure

Datasheet testo 510i (PDF, 339 KB)	Download
Instruction manual testo Smart Probes (application/pdf, 1.705 KB)	Download
