Datalogger

Testo 174 H

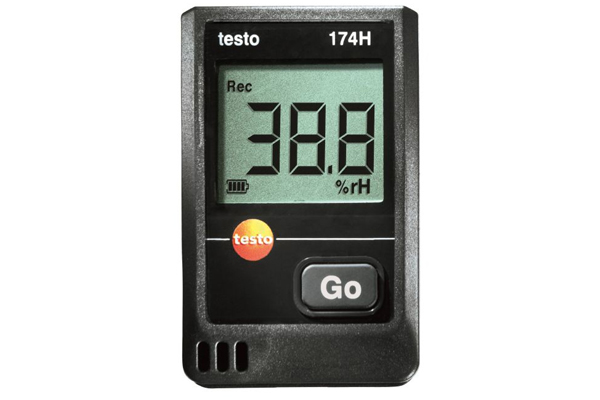

testo 174 H - Temperature and humidity mini data logger
Price on Request
GST and accessories extra

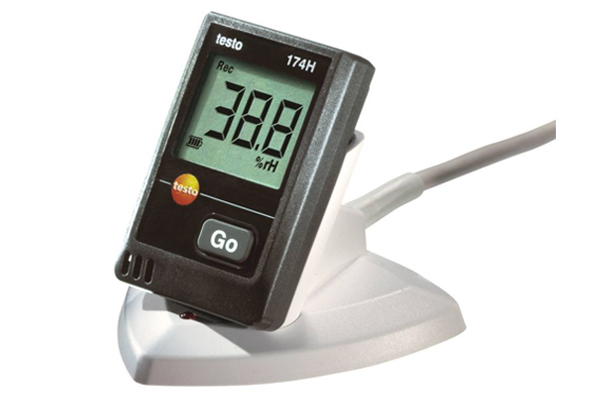

Memory for up to 16,000 temperature and humidity measurements Long life humidity sensor for reliable and accurate measurements Easy data transfer via USB cable, practical data analysis and logging on PC Free software download (ComSoft Basic)

Product Description

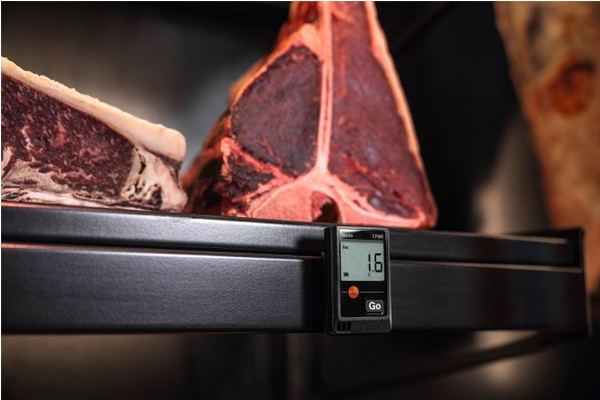

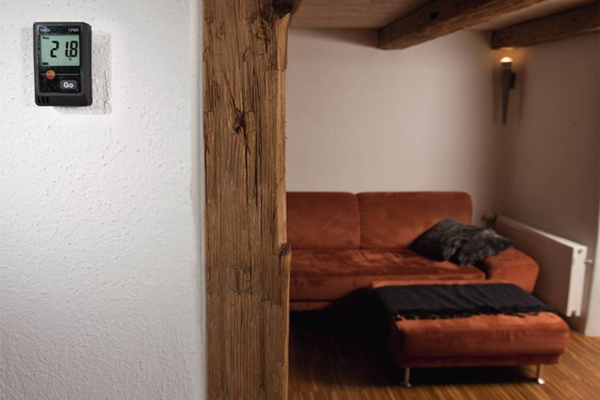

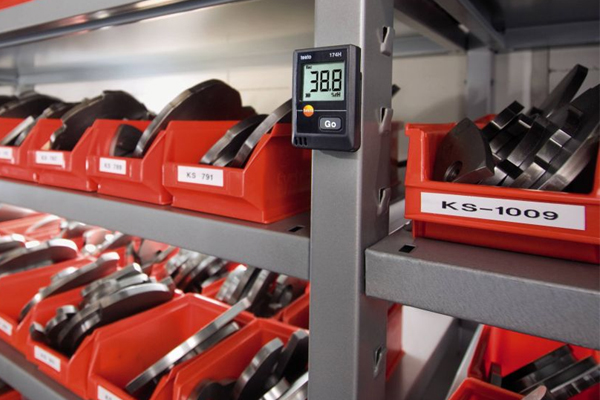

The testo 174 H mini data logger allows you to monitor temperature and humidity sensitive goods– including foods, archives or metal parts that are susceptible to surface rust – or carry out discreet humidity checks in buildings.
The mini data logger has built-in long life sensors that can measure the temperature and humidity of the surrounding environment, a memory for upto 16,000 measurements and an easy-to-read display that shows the current reading as well as any breached thresholds.
The standard batteries (2x CR 2032) included with the logger can be easily replaced by the user.
Programming and Analyzing the Temperature and Humidity Mini Data Logger - testo 174 H

Choose 1 of 3 software versions to program or read out this mini data logger or to analyze the measuring data you have obtained on your PC:

-  Software ComSoft Basic– included – allows you to program the logger and analyze the data quickly and easily

-  Software ComSoft Professional– optional – provides you with additional possibilities and a more detailed analysis of the temperature and humidity values

-  Software ComSoft CFR 21 Part11– optional – ideal for the special demands of the pharmaceutical sector in compliance with 21 CFR Part 11



Delivery Scope

testo 174H temperature and humidity mini data logger, wall bracket, 2 x CR 2032 lithium batteries, calibration protocol.
Temperature - NTC

Measuring range

-20 to +70 °C

Accuracy

±0.5 °C (-20 to +70 °C)

Resolution

0.1 °C
Humidity - Capacitive

Measuring range

0 to 100 %RH*

Accuracy

±3 %RH (2 to +98 %RH) at +25 °C

±0.03 %RH/K ±1 Digit

Resolution

0.1 %RH

* Not for condensing atmospheres.

General technical data

Weight

34 g

Dimensions

60 x 38 x 18.5 mm

Operating temperature

-20 to +70 °C

Product-/housing material

Plastic

Protection class

IP20

Channels

2 internal

Product colour

Black

Standards

2011/65/EU; EU-guideline 2014/30/EU

Measuring rate

1 min - 24 h

Battery type

2 x 3V button cell (CR 2032)

Battery life

1 year (15 min measuring cycle, +25 °C)

Memory

16,000 measuring values

Storage temperature

-40 to +70 °C
Product Brochure
Data sheet testo 174H (application/pdf, 245 KB) Download
Instruction manual testo 174-H, -T (PDF, 1.8 MB) Download
