Testo 310
Price on Request
GST and accessories extra
- Direct O2, CO, flue gas and ambient temperature measurements
- Integrated measurement menu for flue gas, draft, CO ambient airand pressure
- Quick sensor zero in only 30 seconds
- Large, backlit digital display, rechargeable lithium battery with up to 10 hours life
Details
Product Description
Accurate readings, rugged design, easy-to-use: And that’s exactly what you get with the testo 310 Combustion analyzer. You can carry out quick and reliable checks on combustion and heating systems.
The testo 310 entry-level Combustion analyzer for reliable combustion system checks
The testo 310 combustion analyzer has an easy-to-use menu guide, four integrated menus for flue gas, draft, CO ambient air and pressure measurements, a large, easy-to-read display and a backlight for use in all lighting conditions.
But that is not all. The compact combustion analyzer has a wide range of useful features that make it the ideal companion for combustion and heating systems checks. Thanks to the built-in magnet, it can stick to almost any metal object, like a burner for example, leaving both hands free for other tasks. The sensor can be zeroed in as little as 30 seconds and the sensor filter is just as easy to replace. In addition to that, the device has a rugged design which protects it against impact and damage and an easy-to-empty condensate collection tank.
The readings can also be transferred directly to your testo turbo printer (optional) via the combustion analyzer’s infrared interface, allowing you to print out on site.

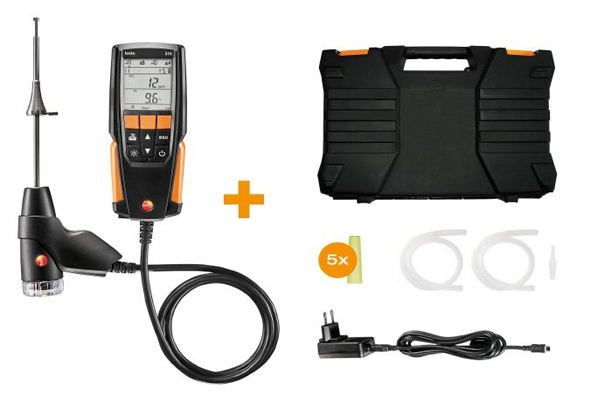

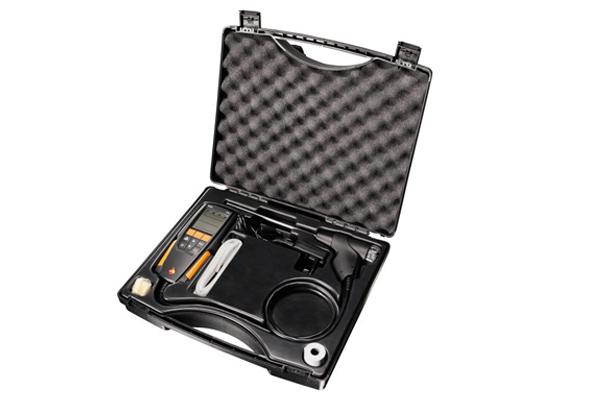

testo 310 incl. battery and calibration protocol for the measurement of O2, CO, hPa and °C; probe 180 mm with cone; case; mains unit incl. cable; silicon hose for pressure measurement; particle filter 5 off.
The testo 310 entry-level Combustion analyzer for reliable combustion system checks
The testo 310 combustion analyzer has an easy-to-use menu guide, four integrated menus for flue gas, draft, CO ambient air and pressure measurements, a large, easy-to-read display and a backlight for use in all lighting conditions.
But that is not all. The compact combustion analyzer has a wide range of useful features that make it the ideal companion for combustion and heating systems checks. Thanks to the built-in magnet, it can stick to almost any metal object, like a burner for example, leaving both hands free for other tasks. The sensor can be zeroed in as little as 30 seconds and the sensor filter is just as easy to replace. In addition to that, the device has a rugged design which protects it against impact and damage and an easy-to-empty condensate collection tank.
The readings can also be transferred directly to your testo turbo printer (optional) via the combustion analyzer’s infrared interface, allowing you to print out on site.
Delivery Scope
Technical Data
| General technical data | |
|---|---|
|
Weight |
(with probe) Approx. 700 g |
|
Dimensions |
201 x 83 x 44 mm |
|
Operating temperature |
-5 to +45 °C |
|
Display type |
LCD |
|
Display function |
Backlit 2-line display |
|
Power supply |
Battery: 1500 mAh, mains unit 5V/1A |
|
Storage temperature |
-20 to +50 °C |
| Temperature - TC Type K (NiCr-Ni) | |
|---|---|
|
Measuring range |
-20 to +100 °C |
|
Accuracy |
±1 °C |
|
Resolution |
0.1 °C |
|
Reaction time |
< 50 s |
Temperature (ambient temperature)
| Temperature - TC Type J (Fe-CuNi) | |
|---|---|
|
Measuring range |
0 to +400 °C |
|
Accuracy |
±1 °C (0 to +100 °C) ±1.5 % of mv (> 100 °C) |
|
Resolution |
0.1 °C |
|
Reaction time |
< 50 s |
Temperature (flue gas)
| Flue gas O₂ | |
|---|---|
|
Measuring range |
0 to 21 Vol.% |
|
Accuracy |
±0.2 Vol.% |
|
Resolution |
0.1 Vol.% |
|
Reaction time t₉₀ |
30 s |
| Differential Pressure flue gas Draught - Piezoresistive | |
|---|---|
|
Measuring range |
-20 to +20 hPa |
|
Accuracy |
±0.03 hPa (-3.00 to +3.00 hPa) ±1.5 % of mv (Remaining Range) |
|
Resolution |
0.01 hPa |
| Flue gas degree of effectivity, Eta (calculated) | |
|---|---|
|
Measuring range |
0 to 120 % |
|
Resolution |
0.1 % |
| Flue gas loss (calculated) | |
|---|---|
|
Measuring range |
0 to 99.9 % |
|
Resolution |
0.1 % |
| Flue gas CO₂ calculation (calculated from O₂) | |
|---|---|
|
Measuring range |
0 to CO₂ max (Display range) |
|
Accuracy |
±0.2 Vol.% |
|
Resolution |
0.1 Vol.% |
|
Reaction time t₉₀ |
< 40 s |
| Pressure measurement | |
|---|---|
|
Measuring range |
-40 to +40 hPa |
|
Accuracy |
±0.5 hPa |
|
Resolution |
0.1 hPa |
| Flue gas CO (without H₂-compensation) | |
|---|---|
|
Measuring range |
0 to 4000 ppm |
|
Accuracy |
±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm) |
|
Resolution |
1 ppm |
|
Reaction time t₉₀ |
60 s |
| Ambient CO | |
|---|---|
|
Measuring range |
0 to 4000 ppm |
|
Accuracy |
±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm) |
|
Resolution |
1 ppm |
|
Reaction time |
60 s |
